90-2-39-1 Spicer Spl90 Series Flange Yoke

Spicer 90-2-39-1 | (SPL90) Drive Shaft Flange Yoke

Dana

  • $257.96


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series SPL90

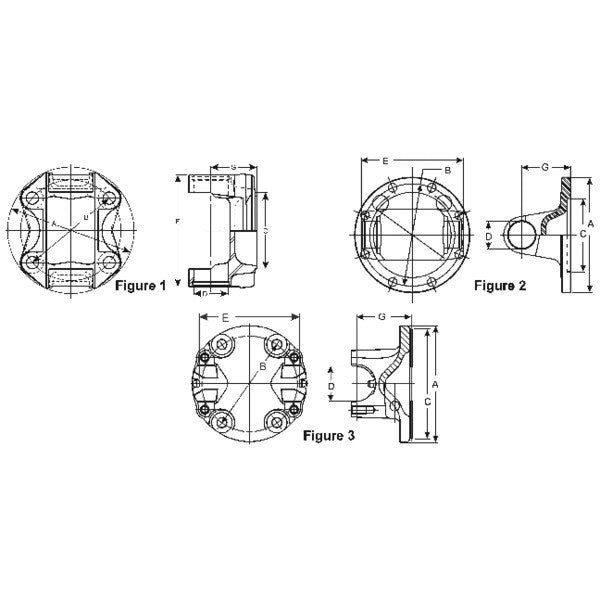

Bolt Circle Dia. In. (B) 7.250
Bolt Hole Dia. In (B) .375 - DRILLED
Design Circular
Flange Face To C/L In. (G) 2.750
Flange Or Swing Dia. In. (A) 8.000
Material Steel
Number Of Bolt Holes 8
Outside Yoke Dimension In.(E) 5.38
Pilot Dia. M=Male F=Female (C) 6.438 - MALE
Yoke Bearing Dimension In. (D) 1.625
Package Qty 1
Package Type EACH
Weight 5.28 LB
Country of Origin Brazil
