90-1-21X Spicer Spl90 Series Companion Flange

Spicer 90-1-21X | (SPL90) Drive Shaft Flange

Dana

  • $311.52


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series SPL90

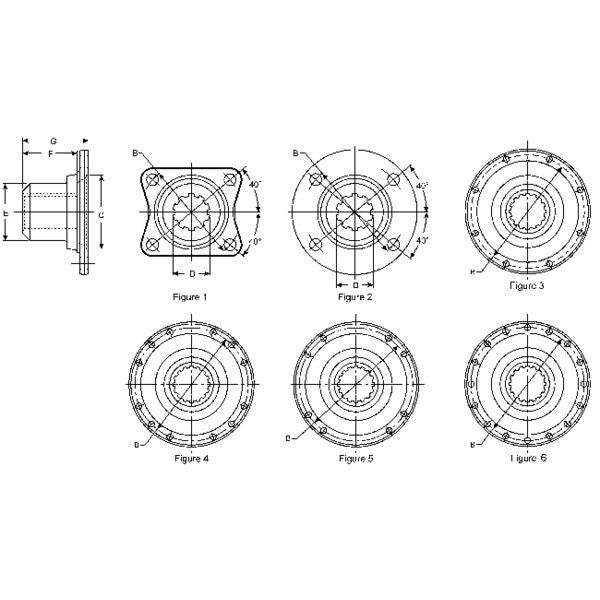

Bolt Hole Diameter In (FL YK) 0.375 - DRILLED
Flange Face To End Of Hub (G) 3.719
Ground Hub Diameter In. 2.562
Involute Spline Y
Length Thru Hole (F) In. 2.750
Major Diameter (D) In. 1.790
Number Of Holes (FL YK) 8
Pilot Diameter (C) In. 5.312 - MALE
Spline Count 34 I
Package Qty 1
Package Type EACH
Weight 3.65 LB
Country of Origin United States
