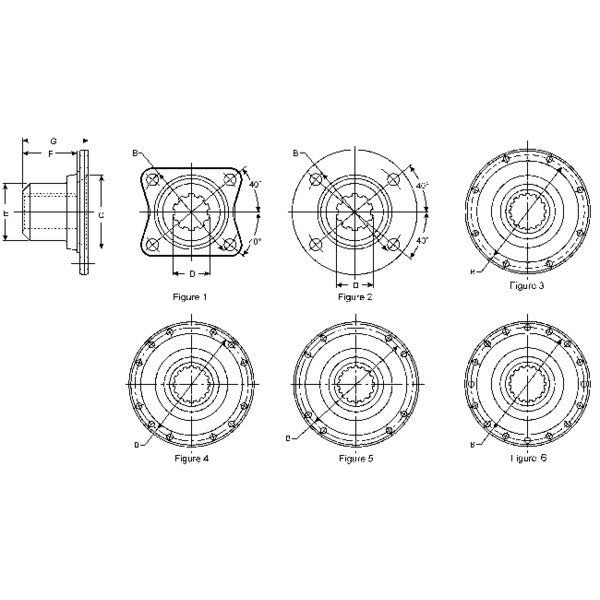

6.5-1-1811 Spicer 1810 Series Companion Flange

Spicer 6.5-1-1811 | (1810) Drive Shaft Flange

Dana

  • $773.66


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1810
Bolt Circle Dia.(B) In.(FL YK) 7.25
Bolt Hole Diameter In (FL YK) 0.438 - DRILLED
Companion Flange Assembly N
Flange Face To End Of Hub (G) 3.438
Ground Hub Diameter In. 3.317
Involute Spline N
Length Thru Hole (F) In. 2.75
Major Diameter (D) In. 2.35
Material Steel
Number Of Holes (FL YK) 12
Pilot Diameter (C) In. 7.750 - FEMALE
Spline Count 16
Package Qty 1
Package Type EACH
Weight 4.6 LB
Country of Origin United States
