5-1-6511 Spicer 1610 Series Companion Flange

Spicer 5-1-6511 | (1610) Drive Shaft Flange


  • $941.97

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1610

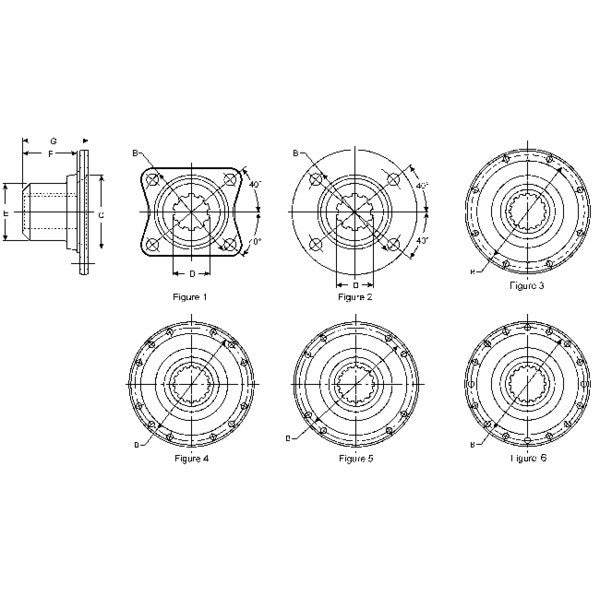

Bolt Circle Dia.(B) In.(FL YK) 6.125
Bolt Hole Diameter In (FL YK) 0.375 - DRILLED
Companion Flange Assembly N
Flange Face To End Of Hub (G) 3.625
Ground Hub Diameter In. 3.062
Involute Spline Y
Length Thru Hole (F) In. 2.915
Major Diameter (D) In. 1.755
Material Steel
Number Of Holes (FL YK) 8
Pilot Diameter (C) In. 6.625 - FEMALE
Spline Count 13 I
Package Qty 1
Package Type EACH
Weight 4.15 LB
Country of Origin United States
