5-1-1154 Spicer 1610 Series Companion Flange

Spicer 5-1-1154 | Drive Shaft Flange

THIS ITEM IS CURRENTLY UNAVAILABLE.


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

Brand Spicer
FLANGE TYPE CIRCULAR
SERIES 1610
PILOT DIAMETER IN. 6.625 - FEMALE

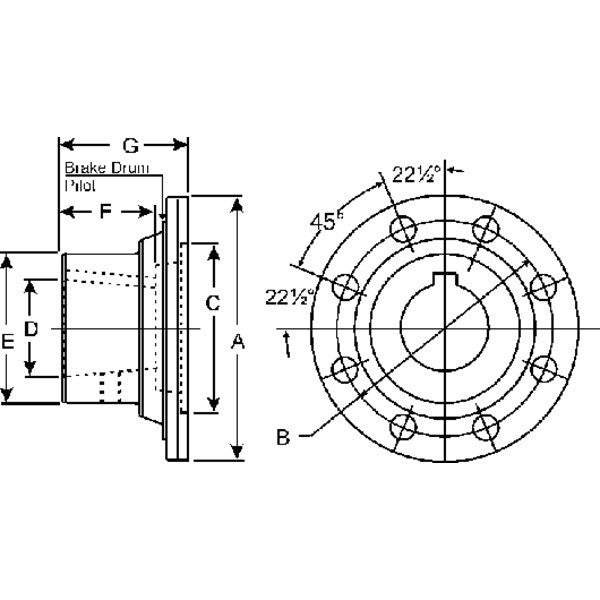

MAJOR BORE DIAMETER (D) IN. 1.750
KEYWAY WIDTH IN. .438
GROUND HUB DIAMETER (E) IN. 2.750
LENGTH THRU HOLE (F) IN. 2.250
FLANGE FACE TO END OF HUB (G) 2.938
FLANGE HOLE DIAMETER .325
NUMBER OF HOLES 8
FLANGE DIAMETER/WIDTH 6.88
BOLT HOLE CIRCLE DIAMETER IN 6.130
VMRS 024002040
