Spicer 5-1-02709 | (1610) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1610

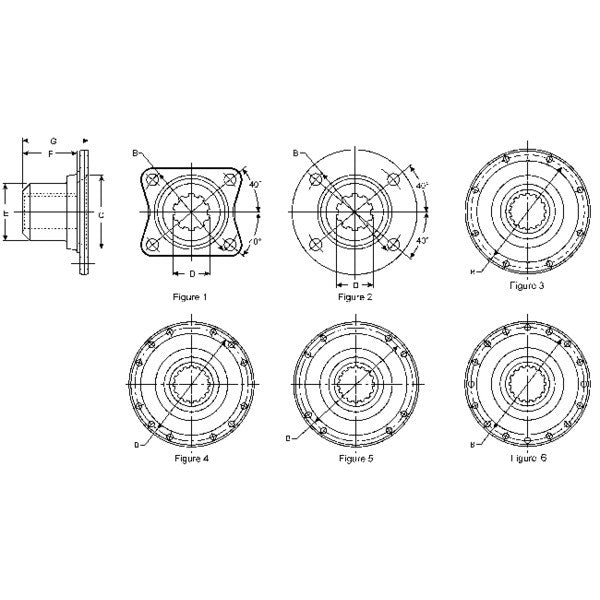

Bolt Circle Dia.(B) In.(FL YK)	5.118
Bolt Hole Diameter In (FL YK)	0.512
Companion Flange Assembly	N
Flange Face To End Of Hub (G)	2.59
Ground Hub Diameter In.	2.625
Involute Spline	Y
Length Thru Hole (F) In.	2.188
Major Diameter (D) In.	1.79
Material	Steel
Number Of Holes (FL YK)	4
Pilot Diameter (C) In.	FEMALE
Spline Count	34 I
Package Qty	1
Package Type	EACH
Weight	5.55 LB
Country of Origin	United States
