4-82-561 Spicer 1550 Series Yoke Shaft

Spicer 4-82-561 | (1550) Drive Shaft Yoke Shaft

Dana

  • $396.72


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1550
Angle #1 30

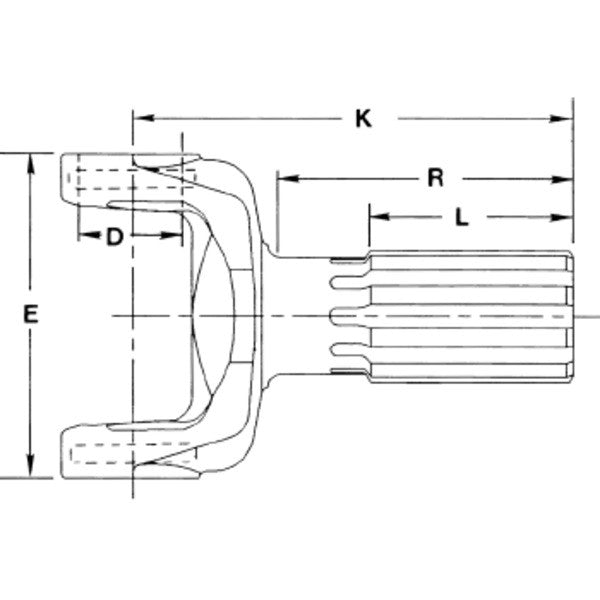

Centerline To End Of Splne (K) 9.75
End/Spline To Point/Rad. (R ) 7.094
Major Spline Diameter 1.75
Spline Count 16
Spline Hole Minor Diameter 1.484
Spline Length (L) In 3
Spline Width 0.172
Style SR
Package Qty 1
Package Type EACH
Weight 3.45 LB
Country of Origin United States
