4-1-5341 Spicer 1480 Series Companion Flange

Spicer 4-1-5341 | (1480) Drive Shaft Flange

Dana

  • $256.61


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1480

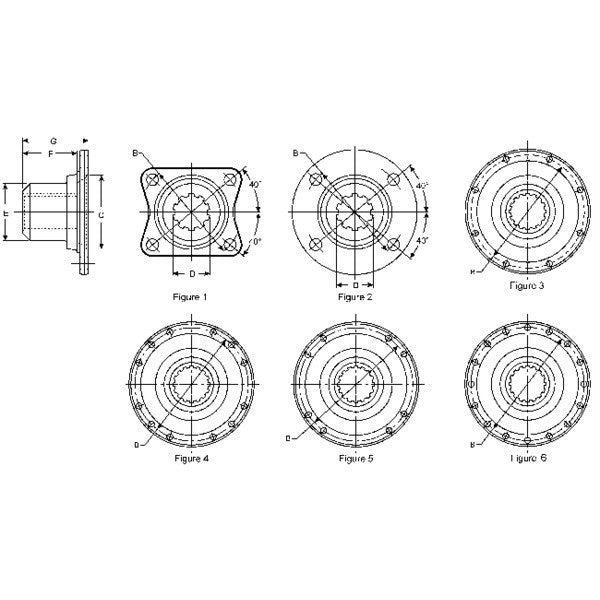

Bolt Circle Dia.(B) In.(FL YK) 4.75
Bolt Hole Diameter In (FL YK) 0.509 - DRILLED
Companion Flange Assembly N
Flange Face To End Of Hub (G) 3.76
Involute Spline Y
Length Thru Hole (F) In. 2.825
Major Diameter (D) In. 1.755
Material Steel
Number Of Holes (FL YK) 4
Pilot Diameter (C) In. 3.750 - FEMALE
Spline Count 13 I
Package Qty 1
Package Type EACH
Weight 2.97 LB
Country of Origin United States
