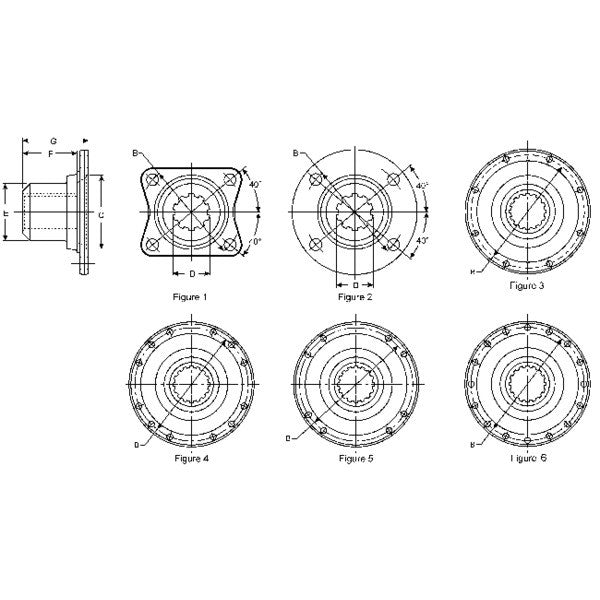

4-1-5201X Spicer 1480 Series Companion Flange

Spicer 4-1-5201X | (1480) Drive Shaft Flange

Dana

  • $197.84


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1480
Bolt Hole Diameter In (FL YK) 0.500 - DRILLED
Companion Flange Assembly Y
Flange Face To End Of Hub (G) 3.344
Ground Hub Diameter In. 2.562
Involute Spline Y
Length Thru Hole (F) In. 2.75
Major Diameter (D) In. 1.79
Material Steel
Number Of Holes (FL YK) 4
Pilot Diameter (C) In. 3.750 - MALE
Spline Count 34 I
Package Qty 1
Package Type EACH
Weight 2.47 LB
Country of Origin United States
