Spicer 4-1-5131 | (1480) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1480

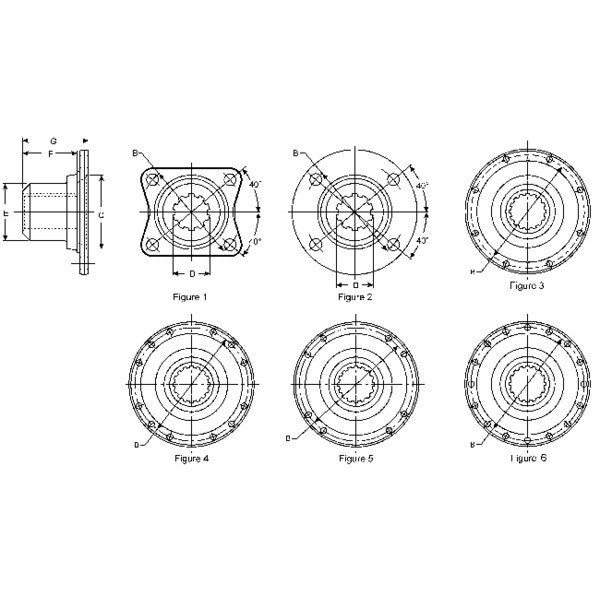

Bolt Circle Dia.(B) In.(FL YK)	4.75
Bolt Hole Diameter In (FL YK)	0.500 - DRILLED
Companion Flange Assembly	N
Flange Face To End Of Hub (G)	2.734
Ground Hub Diameter In.	2.5
Involute Spline	N
Length Thru Hole (F) In.	1.938
Major Diameter (D) In.	1.75
Material	Steel
Number Of Holes (FL YK)	4
Pilot Diameter (C) In.	3.750 - FEMALE
Spline Count	10
Package Qty	1
Package Type	EACH
Weight	1.66 LB
Country of Origin	United States
