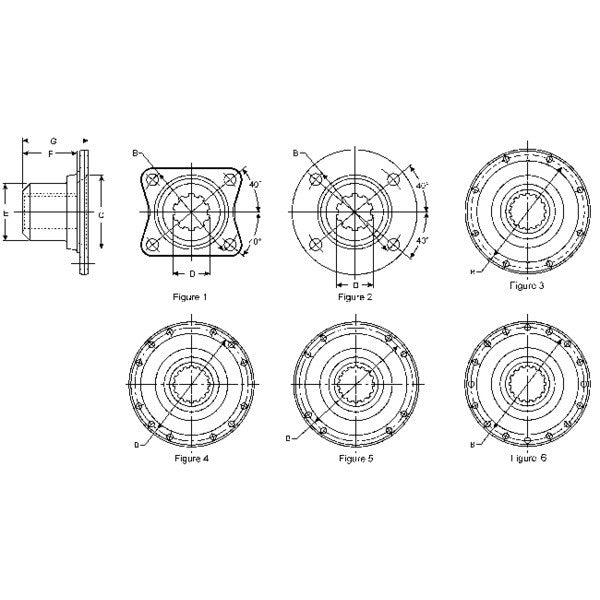

4-1-4501X Spicer 1480 Series Companion Flange

Spicer 4-1-4501X | (1480) Drive Shaft Flange

Dana

  • $303.12


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1480
Bolt Hole Diameter In (FL YK) 0.500 - DRILLED
Companion Flange Assembly Y
Flange Face To End Of Hub (G) 3.344
Ground Hub Diameter In. 2.562
Involute Spline Y
Length Thru Hole (F) In. 2.75
Major Diameter (D) In. 1.79
Material Steel
Number Of Holes (FL YK) 4
Pilot Diameter (C) In. 3.750 - FEMALE
Spline Count 34 I
Package Qty 1
Package Type EACH
Weight 2.18 LB
Country of Origin United States
