3-4-93 Spicer 1350 Series End / Pinion Yoke

Spicer 3-4-93 | (1350) Drive Shaft End Yoke

Dana

  • $204.17


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1350

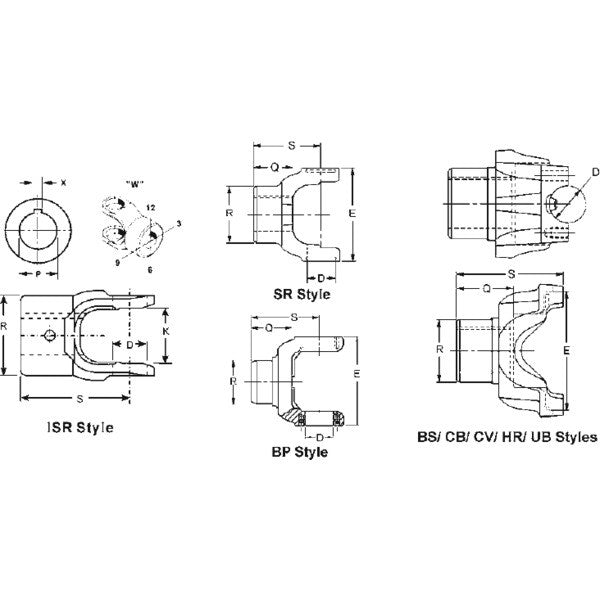

C/L To End Hub S 2.688
Hole Diameter (In) P 1.25
Hub Diameter R 2
Involute Spline N
Keyway Location W 12
Material Steel
Outside Yoke Dimension (In) E 3.875
Sae Keyway Width (In) X 0.312
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.25
Yoke Style SR
Package Qty 1
Package Type EACH
Weight 0.91 LB
Country of Origin United States
