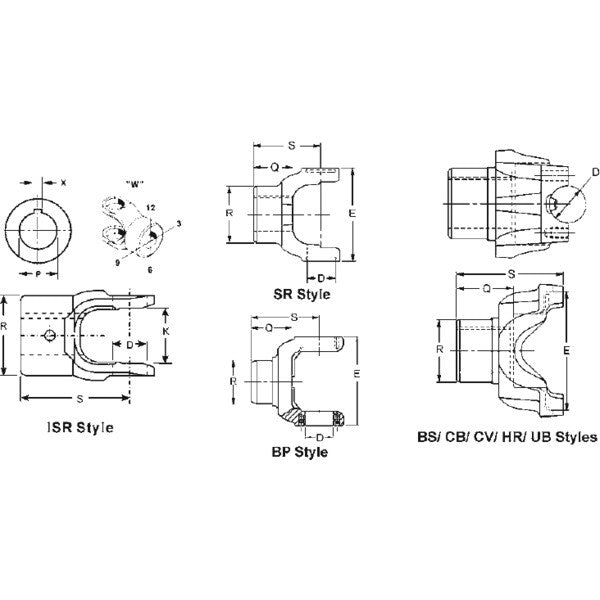

Spicer 3-4-613-1 | (1350) Drive Shaft End Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1350
C/L To End Hub S	3.031
Hole Diameter - Max	1.376
Hole Diameter - Min	1.375
Hole Diameter (In) P	1.375
Hub Diameter R	2.25
Involute Spline	N
Joint Angle #1	22
Keyway Location W	12
Keyway Width - Max	0.3155
Keyway Width - Min	0.3135
Length Thru Hole Q	1.5
Material	Steel
Outside Yoke Dimension (In) E	3.625
Sae Keyway Width (In) X	0.312
Set Screw Hole Diameter (In)	0.375
Set Screw Location W	6
Type	Straight Round Hole
Yoke Bearing Dimension (In) D	1.188
Yoke Style	BS
Package Qty	1
Package Type	EACH
Weight	1.04 LB
Country of Origin	United States
