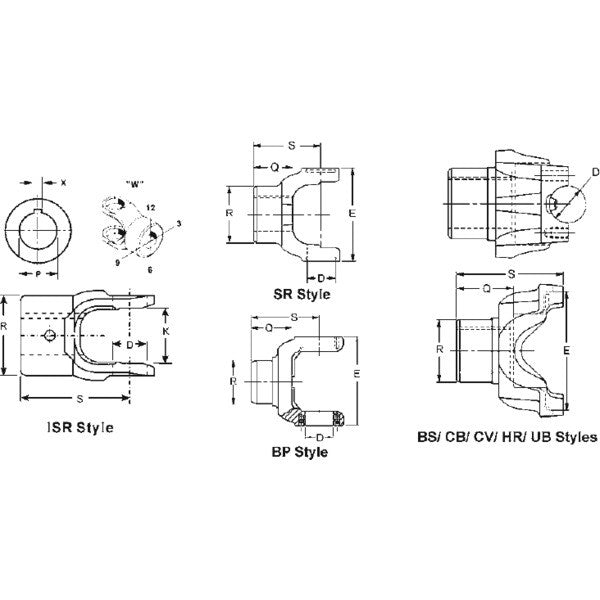

Spicer 3-4-333-1 | (1350) Drive Shaft End Yoke

Dana

  • $80.62


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1350
C/L To End Hub S 3.469
Hole Diameter - Max 1.5005
Hole Diameter - Min 1.4995
Hole Diameter (In) P 1.5
Involute Spline N
Keyway Location W 12
Material Steel
Outside Yoke Dimension (In) E 3.625
Sae Keyway Width (In) X 0.375
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 6
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.188
Yoke Style BS
Package Qty 1
Package Type EACH
Weight 1.32 LB
Country of Origin United States
