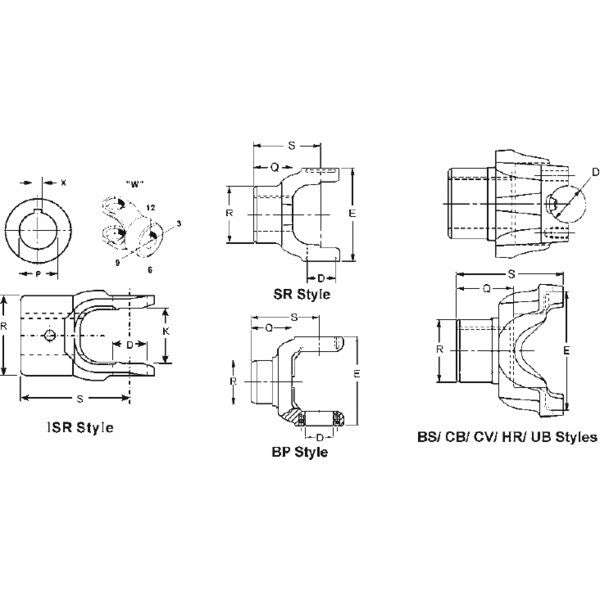

Spicer 3-4-283-1 | (1350) Drive Shaft End Yoke

Dana

  • $51.65


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1350
C/L To End Hub S 3
Hole Diameter - Max 1.2505
Hole Diameter - Min 1.2495
Hole Diameter (In) P 1.25
Hub Diameter R 2.25
Involute Spline N
Joint Angle #1 22
Keyway Location W 12
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
Length Thru Hole Q 1.5
Material Steel
Outside Yoke Dimension (In) E 3.625
Sae Keyway Width (In) X 0.314
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 6
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.188
Yoke Style BS
Package Qty 1
Package Type EACH
Weight 2.4 LB
Country of Origin United States
