Spicer 3-4-273-1 | (1410) Drive Shaft End Yoke

Dana

  • $87.79


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

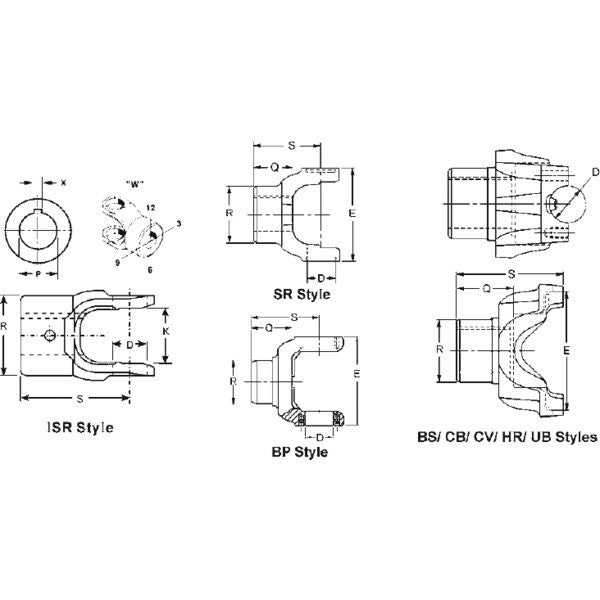

Brand Spicer
Series 1410
C/L To End Hub S 4.25
Hole Diameter - Max 1.7505
Hole Diameter - Min 1.7495
Hole Diameter (In) P 1.75
Hub Diameter R 2.75
Involute Spline N
Joint Angle #1 30
Keyway Location W 12
Keyway Width - Max 0.44
Keyway Width - Min 0.438
Length Thru Hole Q 2.5
Material Steel
Outside Yoke Dimension (In) E 4.188
Sae Keyway Width (In) X 0.439
Set Screw Hole Diameter (In) 0.5
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.188
Yoke Style BS
Package Qty 1
Package Type EACH
Weight 1.9 LB
Country of Origin United States
