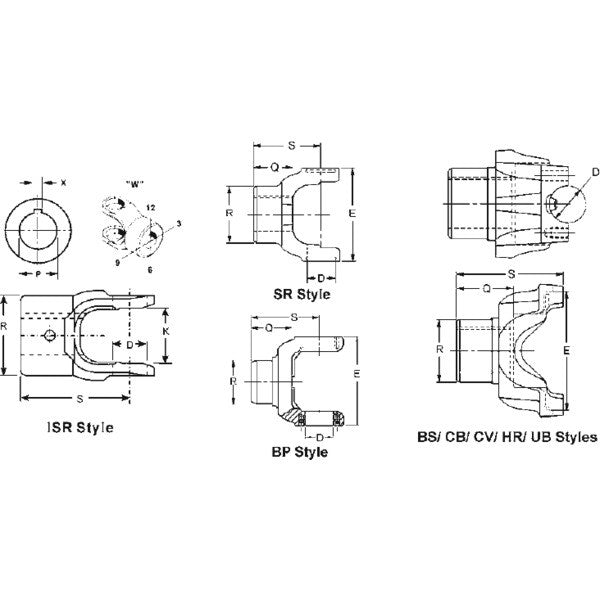

Spicer 3-4-263-1 | (1410) Drive Shaft End Yoke

Dana

  • $103.85


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1410
C/L To End Hub S 4
Hole Diameter - Max 1.5005
Hole Diameter - Min 1.4995
Hole Diameter (In) P 1.5
Hub Diameter R 2.69
Involute Spline N
Keyway Location W 12
Keyway Width - Max 0.378
Keyway Width - Min 0.376
Length Thru Hole Q 2.27
Material Steel
Outside Yoke Dimension (In) E 4.188
Sae Keyway Width (In) X 0.377
Set Screw Hole Diameter (In) 0.5
Set Screw Location W 9
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.188
Yoke Style BS
Package Qty 1
Package Type EACH
Weight 1.75 LB
Country of Origin United States
