Spicer 3-4-1763-1 | (1410) Drive Shaft End Yoke

Dana

  • $107.01


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

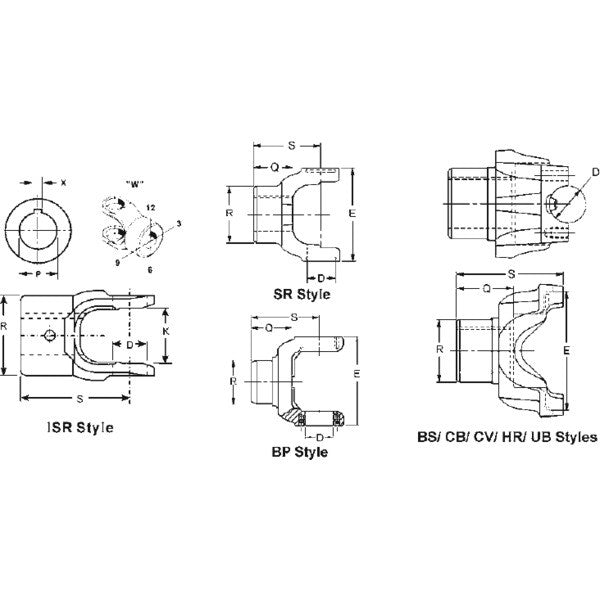

Brand Spicer
Series 1410
C/L To End Hub S 3.7
Hole Diameter (In) P 1.25
Hub Diameter R 2.252
Involute Spline N
Keyway Location W 12
Keyway Width - Max 0.3155
Keyway Width - Min 0.3155
Length Thru Hole Q 2
Material Steel
Outside Yoke Dimension (In) E 4.188
Sae Keyway Width (In) X 0.313
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.188
Yoke Style BS
Package Qty 1
Package Type EACH
Country of Origin United States
