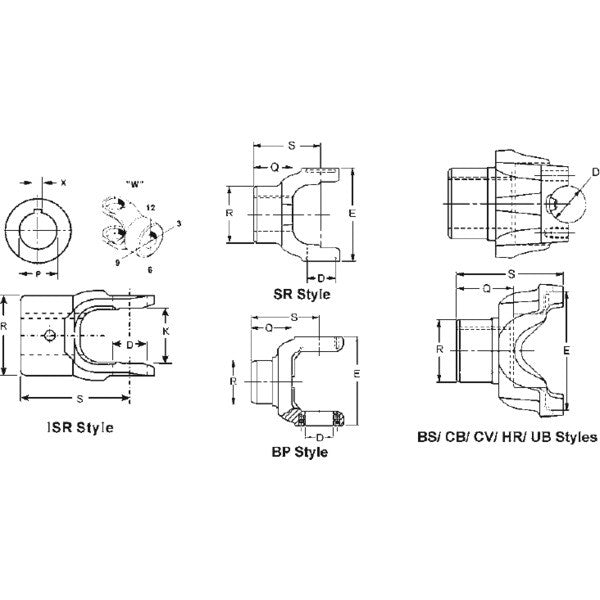

Spicer 3-4-13 | (1350) Drive Shaft End Yoke
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand | Spicer |
---|---|
Series | 1350 |
C/L To End Hub S | 2.75 |
Hole Diameter - Max | 1.25 |
Hole Diameter - Min | 1.015 |
Hole Diameter (In) P | 1.25 |
Hub Diameter R | 2 |
Keyway Location W | 12 |
Keyway Width - Max | 0.3155 |
Keyway Width - Min | 0.3135 |
Sae Keyway Width (In) X | 0.312 |
Set Screw Hole Diameter (In) | 0.375 |
Type | Straight Round Hole |
Package Qty | 1 |
Package Type | EACH |
Weight | 0.82 LB |
Country of Origin | United States |
