3-2-489 Spicer 1480 Series Flange Yoke

Spicer 3-2-489 | (1480) Drive Shaft Flange Yoke


  • $74.23

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1480

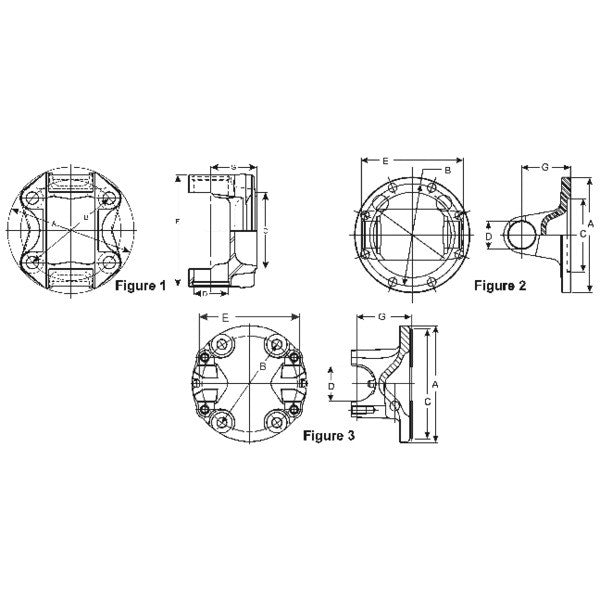

Bolt Circle Dia. In. (B) 4.75
Bolt Hole Dia. In (B) .500 - DRILLED
Design Rectangular
Flange Face To C/L In. (G) 1.5
Flange Or Swing Dia. In. (A) 5.875
Joint Angle #1 8
Material Steel
Number Of Bolt Holes 4
Outside Yoke Dimension In.(E) 4.438
Pilot Dia. M=Male F=Female (C) 3.750 - MALE
Yoke Bearing Dimension In. (D) 1.375
Package Qty 1
Package Type EACH
Country of Origin Mexico
