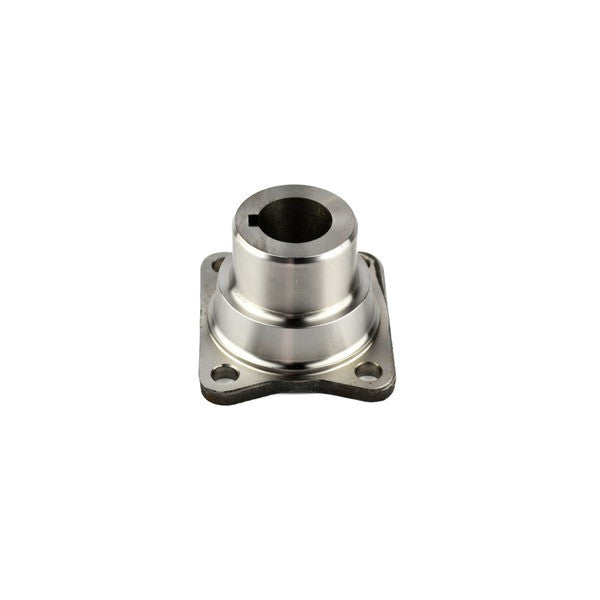

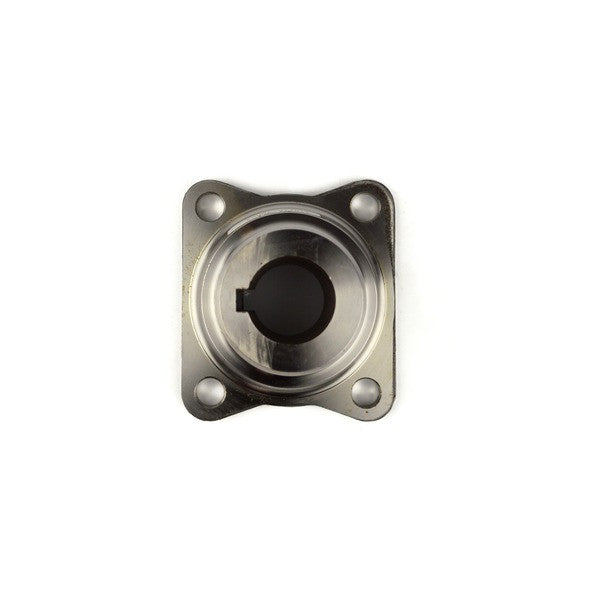

Spicer 3-1-604 | (1350) Drive Shaft Flange

Dana

  • $228.11


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1350

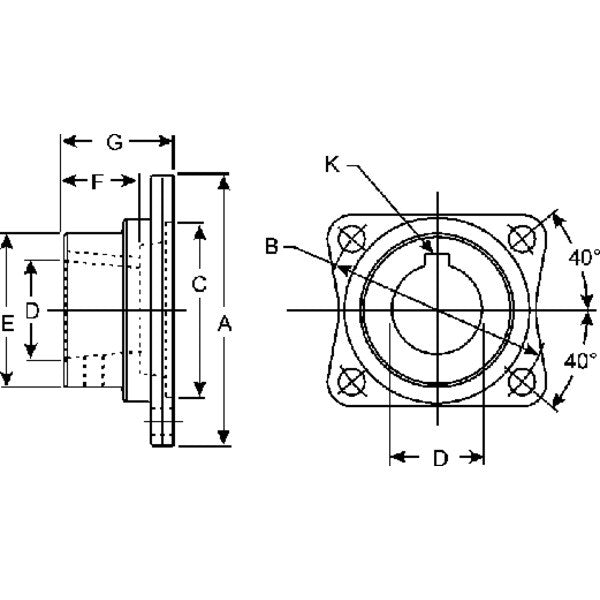

Bolt Hole Circle Diameter In 3.75
Brake Drum Pilot Diameter 3
Flange Diameter/Width 4.625
Flange Face To End Of Hub (G) 2.437
Flange Hole Diameter 0.438
Flange Type Rectangle
Ground Hub Diameter (E) In. 2.125
Keyway Width In. 0.312
Length Thru Hole (F) In. 1.5
Major Bore Diameter (D) In. 1.25
Number Of Holes 4
Pilot Diameter In. 2.750 - FEMALE
SAE Taper 1.250 SAE TAPER
Package Qty 1
Package Type EACH
Weight 0.93 LB
Country of Origin United States
