Spicer 3-1-163 | (1350) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1350
Actual Hole Diameter (Max)	1.2505
Actual Hole Diameter (Min)	1.2495
Actual Keyway Width (Max)	0.3155
Actual Keyway Width (Min)	0.3135

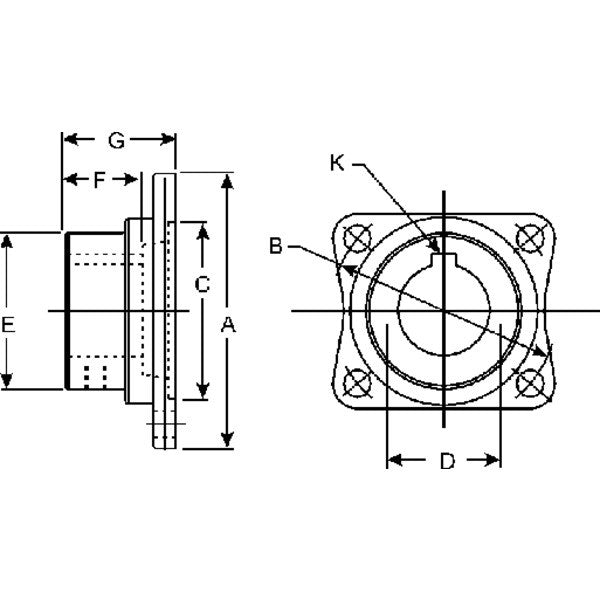

Bolt Circle Diameter (B) In.	3.75
Bolt Hole Diameter (In.)	.438-20 - TAPPED
Bore Diameter (D) In.	1.25
Circ Flnge Face To End Of Hub	2.562
Flange Type	Rectangular
Flange Width Diameter (A) In.	4.562
Hub Diameter (E) In.	2.25
Key Width (K) In.	0.312
Material	Steel
Number Of Holes	4
Pilot Diameter (C) In.	2.750 - FEMALE
Rect Flnge Face End Of Hub (G)	2.562
Rect Lngth Thru Hole (F)	2
Set Loc. ( Hub & Keyway At 12)	6
Set Screw Hole Diameter In.	0.375
Package Qty	1
Package Type	EACH
Weight	1.13 LB
Country of Origin	United States
