Spicer 3-1-1013-4 | (1350) Drive Shaft Flange

Dana

  • $63.86


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1350

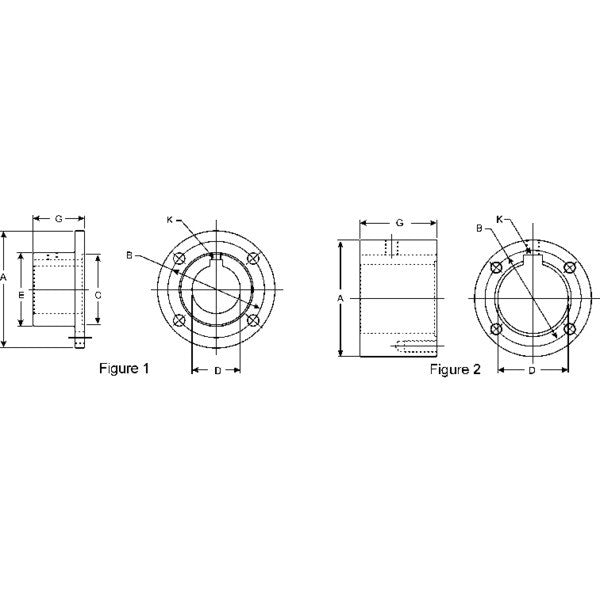

Actual Hole Diameter (Max) 1.251
Actual Hole Diameter (Min) 1.250
Bolt Circle Diameter (B) In. 3.750
Bolt Hole Diameter (In.) .438 DRILLED
Bore Diameter (D) In. 1.250
Circ Flnge Face To End Of Hub 2.000
Flange Type Circular
Flange Width Diameter (A) In. 4.56
Hub Diameter (E) In. 2.875
Key Width (K) In. 0.312
Material Steel
Number Of Holes 4
Pilot Diameter (C) In. 2.750 - FEMALE
Set Screw Hole Diameter In. 0.375
Package Qty 1
Package Type EACH
Weight 1.84 LB
Country of Origin United States
