Spicer 3-1-1013-2 | (1350) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1350

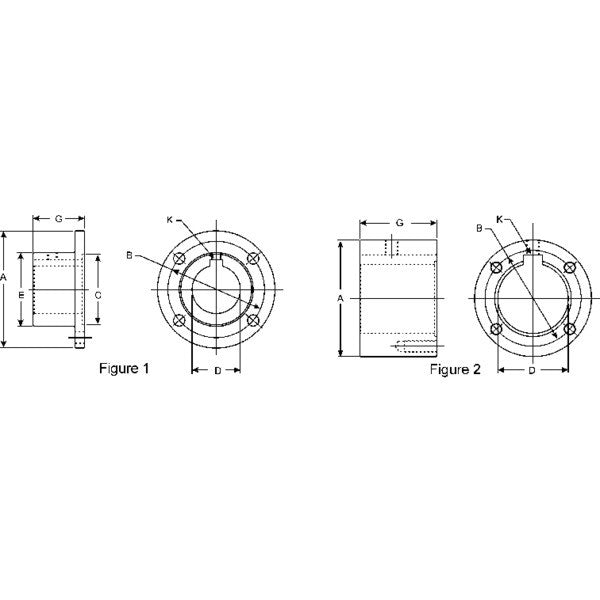

Actual Hole Diameter (Max)	1.126
Actual Hole Diameter (Min)	1.125
Bolt Circle Diameter (B) In.	3.750
Bolt Hole Diameter (In.)	.438 DRILLED
Bore Diameter (D) In.	1.125
Circ Flnge Face To End Of Hub	2.000
Flange Type	Circular
Flange Width Diameter (A) In.	4.56
Hub Diameter (E) In.	2.875
Key Width (K) In.	0.250
Material	Steel
Number Of Holes	4
Pilot Diameter (C) In.	2.750 - FEMALE
Set Screw Hole Diameter In.	0.375
Package Qty	1
Package Type	EACH
Weight	1.66 LB
Country of Origin	United States
