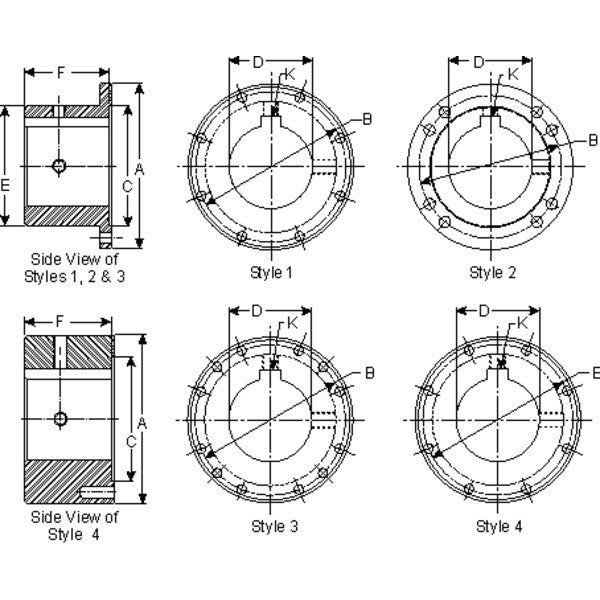

Spicer 3-1-1013-12 | (1350) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1350
Actual Hole Diameter (Max)	1.876
Actual Hole Diameter (Min)	1.875
Bolt Circle Diameter (B) In.	3.750
Bolt Hole Diameter (In.)	.438 DRILLED
Bore Diameter (D) In.	1.875
Circ Flnge Face To End Of Hub	2.000
Flange Type	Circular
Flange Width Diameter (A) In.	4.56
Hub Diameter (E) In.	2.875
Key Width (K) In.	0.500
Material	Steel
Number Of Holes	4
Pilot Diameter (C) In.	2.750 - FEMALE
Set Screw Hole Diameter In.	0.500
Package Qty	1
Package Type	EACH
Weight	1.45 LB
Country of Origin	United States
