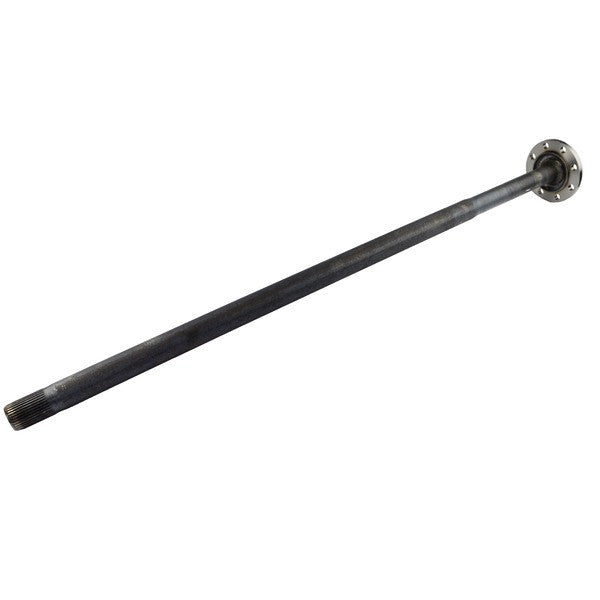

Spicer 2002496-6 | Axle Shaft

Genuine Spicer light vehicle axle products are manufactured to the same high standards as original equipment (OE) parts because they are OE parts. That means when an automotive axle part is replaced with a genuine Spicer part, you are getting the same performance and reliability you have come to expect. And because Dana is constantly revolutionizing the technology behind its Dana axles and Spicer products, the replacement car axle or component you purchase today may even exceed the standards set for the original equipment part that you are replacing.

---

Brand	Spicer
Axle Model	DANA 80
ABS Sensor Ring Included	N
ABS Sensor Ring Installed	N
Axle Cover Bolt Hole Qty	10
Axle Length (In)	40.38
Axle Length (Mm)	1025.652
Axle Shaft Included	Y
Axle Spline Count	35
Axle Type	Complete Assembly
Bearing Included	N
Bearing Pilot Diameter (In)	1.374
Bolt Pattern	8 X 4.02
Brake Pilot Diameter (In)	3.015
Full-Floating Or Semi-Floating	Full-Floating
Includes Tone	N
Inner Axle Included	Y
Length (IN)	40.38
Length (MM)	1025.652
Location	LH
Material	Steel
Number Of Wheel Lugs	8
Outer Axle Included	Y
Quantity	1
Retainer Ring Included	N
Seal Included	N
Seal Kit Included	N
Spline Count	35
U-Joint Included	N
Wheel Bearing Included	N
Wheel Bolt Prep Kit Included	N
Wheel Nuts Included	N
Wheel Stud Hole Diameter (In)	0.484
Wheel Studs Included	N
Package Qty	1
Package Type	EACH
Weight	0.39 LB
Country of Origin	Mexico
