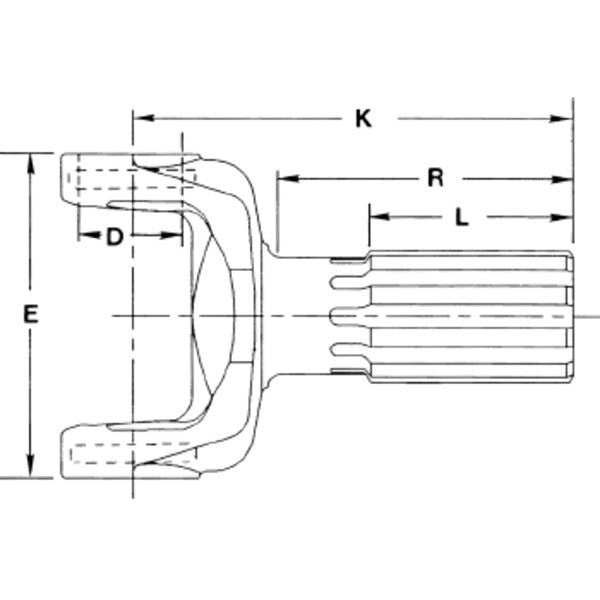

Spicer 2-82-51 | (1310) Drive Shaft Yoke Shaft

Dana

  • $215.53


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1310
Angle #1 16
Bearing Cap Diameter (D) In. 1.062
Centerline To End Of Splne (K) 5.125
End/Spline To Point/Rad. (R ) 3.562
Involute Spline N
Major Spline Diameter 1.25
Outside Yoke Dimension (E) In. 3.469
Spline Count 16
Spline Hole Minor Diameter 1.047
Spline Length (L) In 1.875
Spline Width 0.109
Style SR
Package Qty 1
Package Type EACH
Weight 1.04 LB
Country of Origin United States
