Spicer 2-4-783-1 | (1310) Drive Shaft End Yoke

Dana

  • $70.33


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1310

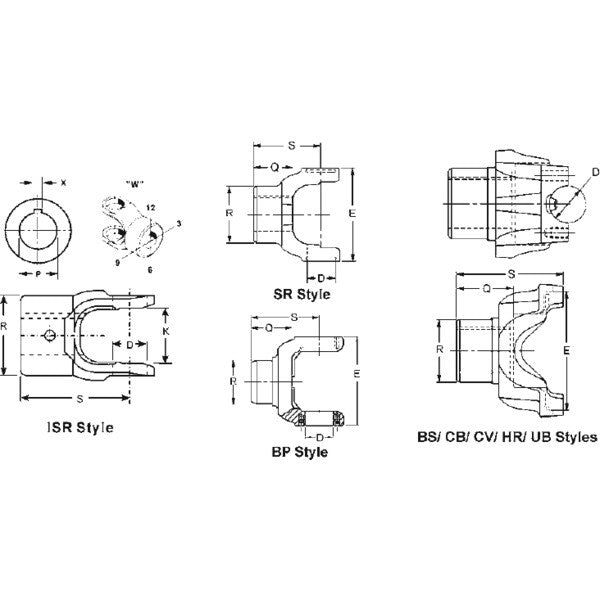

C/L To End Hub S 2.935
Hole Diameter - Max 1.2505
Hole Diameter - Min 1.2495
Hole Diameter (In) P 1.250
Hub Diameter R 2.120
Involute Spline N
Joint Angle #1 22
Keyway Location W 12
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
Length Thru Hole Q 1.495
Material Steel
Outside Yoke Dimension (In) E 3.219
Sae Keyway Width (In) X 0.314
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 6
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.062
Yoke Style BS
Package Qty 1
Package Type EACH
Weight 0.57 LB
Country of Origin United States
