2-4-64-1 Spicer 1310 Series End Yoke

Spicer 2-4-64-1 | (1310) Drive Shaft End Yoke

Dana

  • $256.91


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1310

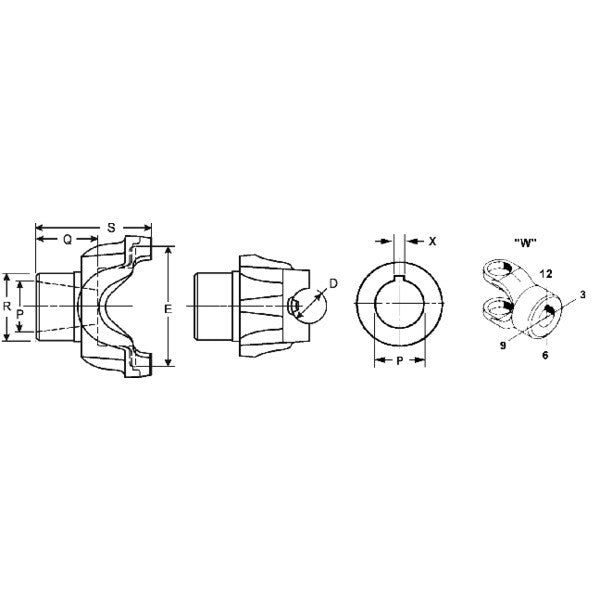

C/L To End Hub S 2.938
Hole Diameter (In) P 1.250
Hub Diameter R 2.125
Joint Angle #1 22
Length Thru Hole Q 1.500
Material Steel
Outside Yoke Dimension (In) E 3.219
Sae Keyway Width (In) X 0.312
Type Tapered Hole
Yoke Bearing Dimension (In) D 1.062
Yoke Style BS
Package Qty 1
Package Type EACH
Weight 0.98 LB
Country of Origin United States
