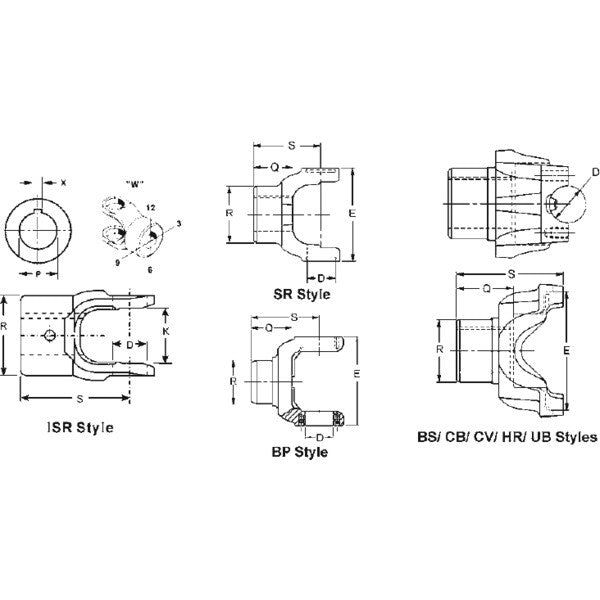

Spicer 2-4-613 | (1310) Drive Shaft End Yoke

Dana

  • $92.16


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310
C/L To End Hub S 2.561
Hole Diameter - Max 1.2505
Hole Diameter - Min 1.2495
Hole Diameter (In) P 1.250
Hub Diameter R 2.125
Involute Spline N
Joint Angle #1 17
Keyway Location W 12
Keyway Width - Max 0.3125
Keyway Width - Min 0.3115
Material Steel
Outside Yoke Dimension (In) E 3.469
Sae Keyway Width (In) X 0.312
Set Screw Hole Diameter (In) 0.375
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.062
Yoke Style SR
Package Qty 1
Package Type EACH
Weight 0.79 LB
Country of Origin United States
