Dana

Spicer 2-4-553 | (1310) Drive Shaft End Yoke

Spicer 2-4-553 | (1310) Drive Shaft End Yoke

Regular price $274.23 USD
Regular price Sale price $274.23 USD
Sale Sold out
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1310

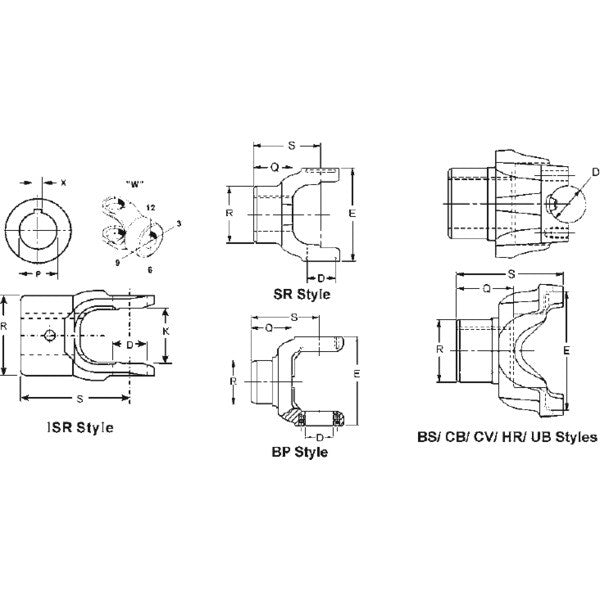

C/L To End Hub S 2.562
Hole Diameter - Max 1.188
Hole Diameter - Min 1.187
Hole Diameter (In) P 1.188
Hub Diameter R 2.125
Involute Spline N
Joint Angle #1 17
Keyway Location W 12
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
Material Steel
Outside Yoke Dimension (In) E 3.469
Sae Keyway Width (In) X 0.312
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 6
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.062
Yoke Style SR
Package Qty 1
Package Type EACH
Weight 0.77 LB
Country of Origin United States
