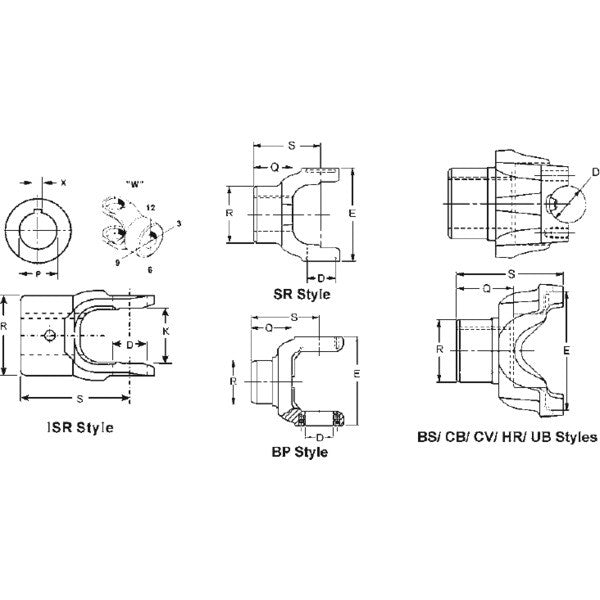

Spicer 2-4-533 | (1310) Drive Shaft End Yoke

Dana

  • $24.62


Spicer end yokes deliver the same quality and reliability you expect from your original equipment parts. That is because they are OE parts, manufactured to the same standards and specifications as the end yokes that were installed in your vehicle in the first place.
Brand Spicer
Series 1310
C/L To End Hub S 2.562
Hole Diameter - Max 1.251
Hole Diameter - Min 1.250
Hole Diameter (In) P 1.250
Hub Diameter R 2.125
Involute Spline N
Joint Angle #1 17
Keyway Location W 12
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
Material Steel
Outside Yoke Dimension (In) E 3.469
Sae Keyway Width (In) X 0.312
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 6
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.062
Yoke Style SR
Package Qty 1
Package Type EACH
Country of Origin United States

Alternative Part(s)
