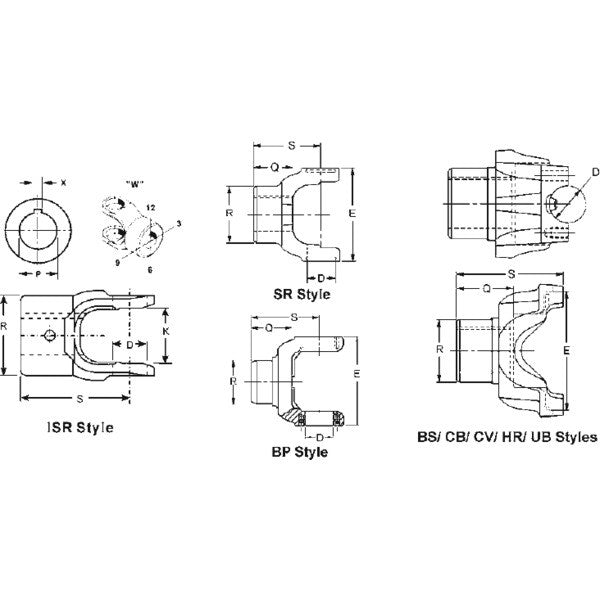

Spicer 2-4-433 | (1310) Drive Shaft End Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1310
C/L To End Hub S	2.562
Hole Diameter - Max	0.7505
Hole Diameter - Min	0.7495
Hole Diameter (In) P	0.750
Hub Diameter R	2.125
Involute Spline	N
Joint Angle #1	17
Keyway Location W	12
Keyway Width - Max	0.1875
Keyway Width - Min	0.1865
Material	Steel
Outside Yoke Dimension (In) E	3.469
Sae Keyway Width (In) X	0.188
Set Screw Hole Diameter (In)	0.375
Set Screw Location W	6
Type	Straight Round Hole
Yoke Bearing Dimension (In) D	1.062
Yoke Style	SR
Package Qty	1
Package Type	EACH
Weight	0.88 LB
Country of Origin	United States
