Spicer 2-4-2613 | (1310) Drive Shaft End Yoke

Dana

  • $123.44


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1310

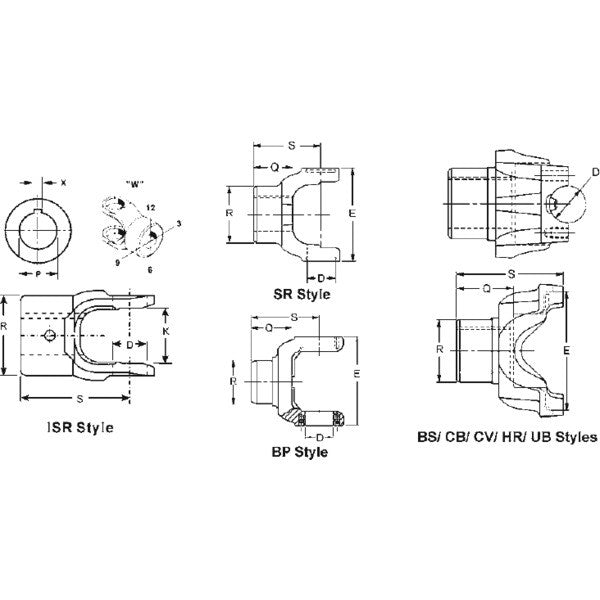

C/L To End Hub S 2.562
Hole Diameter - Max 1.251
Hole Diameter - Min 1.250
Hole Diameter (In) P 1.250
Hub Diameter R 2.125
Involute Spline N
Keyway Location W 12
Keyway Width - Max 0.3155
Keyway Width - Min 0.3135
Material Steel
Outside Yoke Dimension (In) E 3.469
Sae Keyway Width (In) X 0.312
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 6, 9, 12
Type Straight Round Hole
Yoke Bearing Dimension (In) D 1.062
Yoke Style SR
Package Qty 1
Package Type EACH
Weight 0.75 LB
Country of Origin United States
