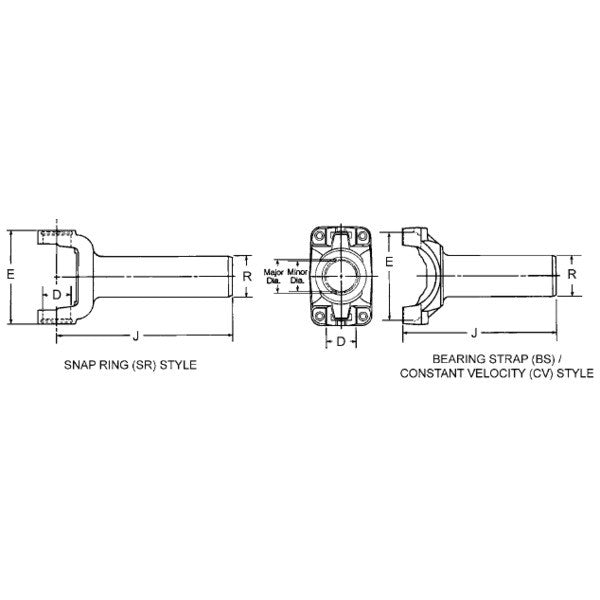

2-3-15961X Spicer 1310 Series Slip Yoke

Spicer 2-3-15961X | (1310) Drive Shaft Slip Yoke

Dana

  • $98.15


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310
Bearing Cap Diameter (D) In. 1.062
C-Line to Washer Face 1.34
Counter Bore Depth .394
Counter Bore Diameter 1.387
Hub Diameter « In. 1.731
Involute I
Material Steel
No. Of Splines 30/32 I
Number of Splines Based On 32
Outside Yoke Dimension (E) In. 3.466
Spline O.D. (MM) 35
Spline O.D. (STD) 1.377
Style SR
To End Of Spline (J) In. 6.102
Package Qty 1
Package Type EACH
Weight 1.16 LB
Country of Origin United States
