2-3-15341X Spicer 1310 Series Slip Yoke

Spicer 2-3-15341X | (1310) Drive Shaft Slip Yoke

Dana

  • $114.46


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310

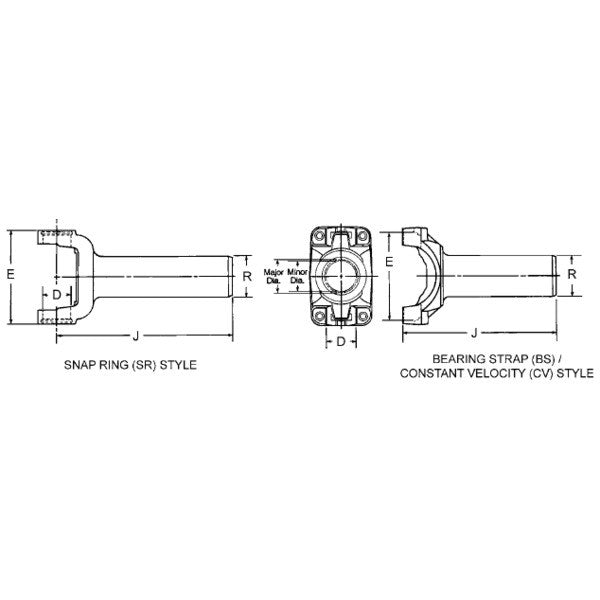

Bearing Cap Diameter (D) In. 1.062
C-Line to Washer Face 1.44
Hub Diameter « In. 1.502
Involute I
Material Steel
No. Of Splines 26/27 I
Number of Splines Based On 27
Outside Yoke Dimension (E) In. 3.466
Spline O.D. (STD) 1.176
Style SR
To End Of Spline (J) In. 6.620
Type of Hub Ground Hub
Package Qty 1
Package Type EACH
Country of Origin United States
