2-3-14001X Spicer 1310 Series Slip Yoke

Spicer 2-3-14001X | (1310) Drive Shaft Slip Yoke

Dana

  • $102.17


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310

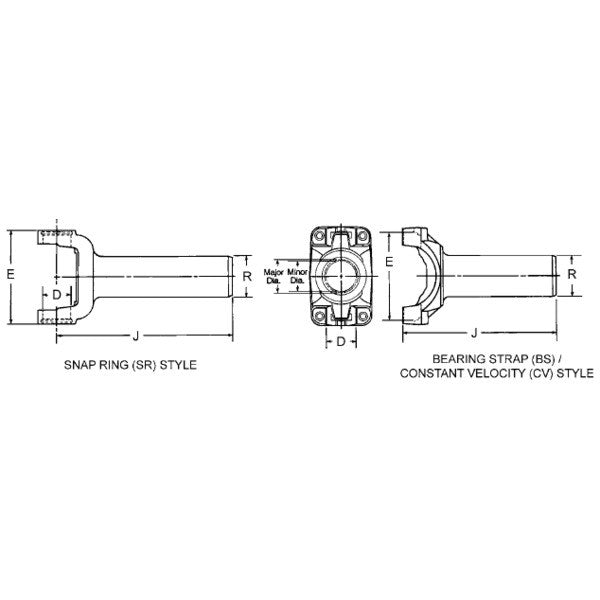

Bearing Cap Diameter (D) In. 1.062
C-Line to Washer Face 1.46
Counter Bore Depth .390
Counter Bore Diameter 1.320
Hub Diameter « In. 1.652
Involute I
Material Steel
No. Of Splines 28/30 I
Number of Splines Based On 30
Outside Yoke Dimension (E) In. 3.466
Spline O.D. (STD) 1.284
Style SR
To End Of Spline (J) In. 6.266
Type of Hub Ground Hub
Package Qty 1
Package Type EACH
Weight 1.18 LB
Country of Origin Mexico
