Spicer 2-1-933 | (1310) Drive Shaft Flange

Dana

  • $294.01


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand Spicer
Series 1310
Actual Hole Diameter (Max) 1.5005
Actual Hole Diameter (Min) 1.4995
Actual Keyway Width (Max) 0.378
Actual Keyway Width (Min) 0.376

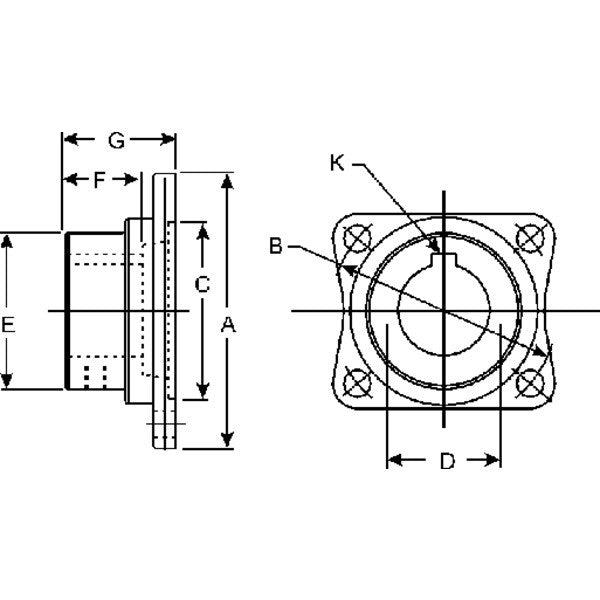

Bolt Circle Diameter (B) In. 3.125
Bore Diameter (D) In. 1.500
Circ Flnge Face To End Of Hub 2.625
Flange Type Rectangular
Flange Width Diameter (A) In. 3.8
Hub Diameter (E) In. 2.438
Key Width (K) In. 0.375
Material Steel
Number Of Holes 4
Pilot Diameter (C) In. 2.375 - FEMALE
Rect Flnge Face End Of Hub (G) 2.625
Rect Lngth Thru Hole (F) 2.000
Set Loc. ( Hub & Keyway At 12) 6
Set Screw Hole Diameter In. 0.375
Package Qty 1
Package Type EACH
Weight 0.93 LB
Country of Origin United States
