Dana

Spicer 2-1-323 | (1310) Drive Shaft Flange

Spicer 2-1-323 | (1310) Drive Shaft Flange

Regular price $326.36 USD
Regular price Sale price $326.36 USD
Sale Sold out
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310
Actual Hole Diameter (Max) 1.2505
Actual Hole Diameter (Min) 1.2495
Actual Keyway Width (Max) 0.253
Actual Keyway Width (Min) 0.251

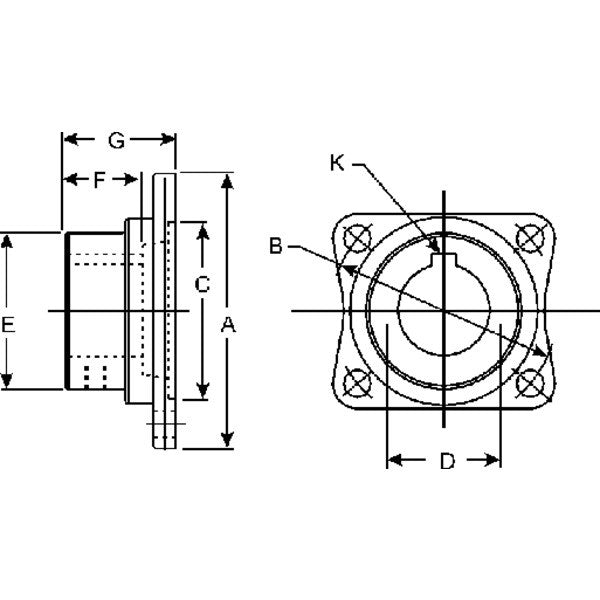

Bolt Circle Diameter (B) In. 3.125
Bore Diameter (D) In. 1.250
Circ Flnge Face To End Of Hub 2.062
Flange Type Rectangular
Flange Width Diameter (A) In. 3.875
Hub Diameter (E) In. 1.875
Key Width (K) In. 0.250
Material Steel
Number Of Holes 4
Pilot Diameter (C) In. 2.375 - FEMALE
Rect Flnge Face End Of Hub (G) 2.062
Rect Lngth Thru Hole (F) 1.500
Set Loc. ( Hub & Keyway At 12) 6
Set Screw Hole Diameter In. 0.375
Package Qty 1
Package Type EACH
Weight 0.54 LB
Country of Origin United States
