Spicer 2-1-1313-9 | (1310) Drive Shaft Flange
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.
Brand | Spicer |
---|---|
Series | 1310 |

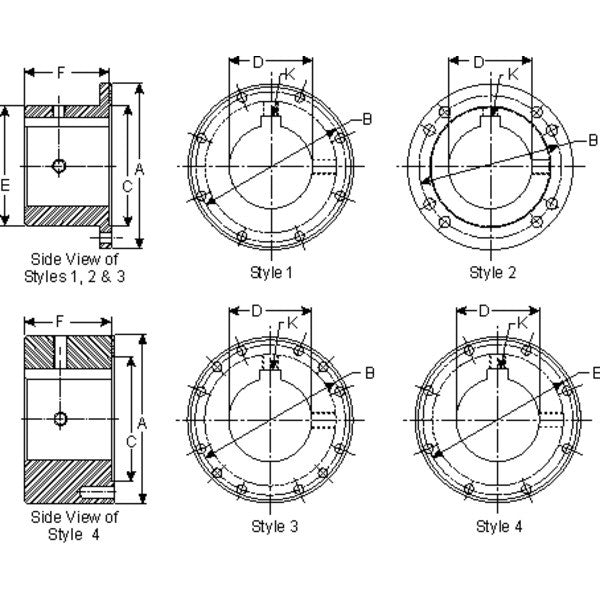

Actual Hole Diameter (Max) | 1.626 |
Actual Hole Diameter (Min) | 1.625 |
Actual Keyway Width (Max) | 0.377 |
Actual Keyway Width (Min) | 0.375 |
Bolt Circle Diameter (B) In. | 3.130 |
Bolt Hole Diameter (In.) | .375 - DRILLED |
Bore Diameter (D) In. | 1.625 |
Circ Flnge Face To End Of Hub | 2.000 |
Flange Type | Circular |
Flange Width Diameter (A) In. | 3.880 |
Hub Diameter (E) In. | 2.438 |
Key Width (K) In. | 0.375 |
Material | Steel |
Number Of Holes | 4 |
Pilot Diameter (C) In. | 2.375 - FEMALE |
Set Screw Hole Diameter In. | 0.375 |
Package Qty | 1 |
Package Type | EACH |
Weight | 2.15 LB |
Country of Origin | United States |
