Spicer 2-1-1313-8 | (1310) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1310

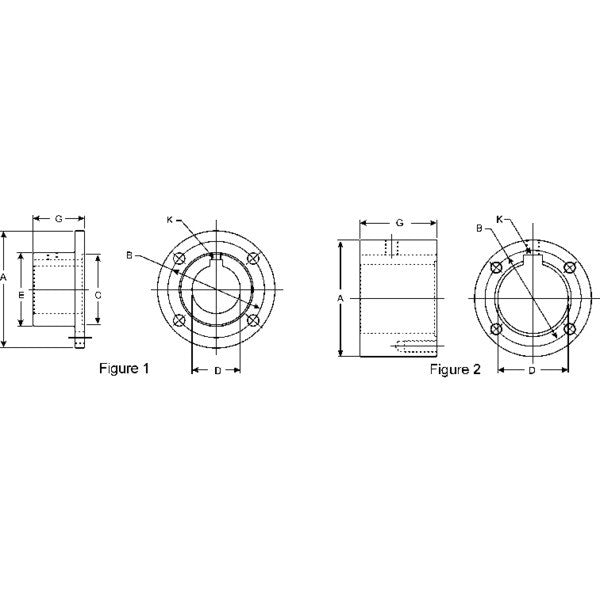

Actual Hole Diameter (Max)	1.501
Actual Hole Diameter (Min)	1.500
Actual Keyway Width (Max)	0.377
Actual Keyway Width (Min)	0.375
Bolt Circle Diameter (B) In.	3.130
Bolt Hole Diameter (In.)	.375 - DRILLED
Bore Diameter (D) In.	1.500
Circ Flnge Face To End Of Hub	2.000
Flange Type	Circular
Flange Width Diameter (A) In.	3.880
Hub Diameter (E) In.	2.438
Key Width (K) In.	0.375
Material	Steel
Number Of Holes	4
Pilot Diameter (C) In.	2.375 - FEMALE
Set Screw Hole Diameter In.	0.375
Package Qty	1
Package Type	EACH
Weight	1.04 LB
Country of Origin	United States
