Dana

Spicer 2-1-1313-5 | (1310) Drive Shaft Flange

Spicer 2-1-1313-5 | (1310) Drive Shaft Flange

Regular price $295.20 USD
Regular price Sale price $295.20 USD
Sale Sold out
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1310
Actual Hole Diameter (Max) 1.376
Actual Hole Diameter (Min) 1.375
Actual Keyway Width (Max) 0.314
Actual Keyway Width (Min) 0.313

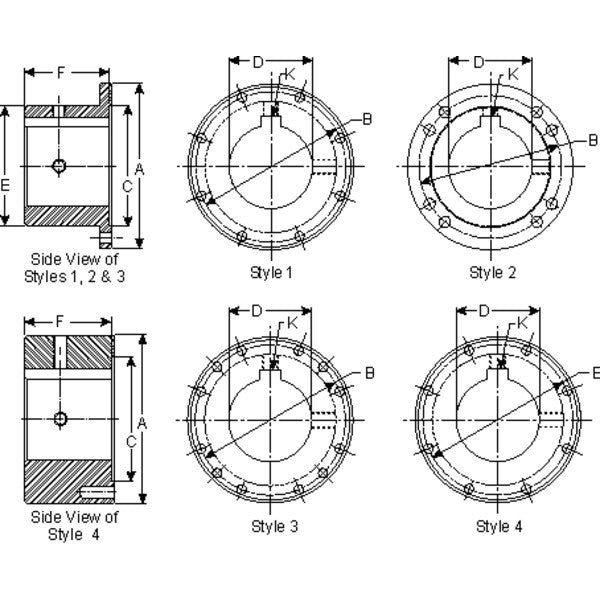

Bolt Circle Diameter (B) In. 3.130
Bolt Hole Diameter (In.) .375 - DRILLED
Bore Diameter (D) In. 1.375
Circ Flnge Face To End Of Hub 2.000
Flange Type Circular
Flange Width Diameter (A) In. 3.88
Hub Diameter (E) In. 2.438
Key Width (K) In. 0.312
Material Steel
Number Of Holes 4
Pilot Diameter (C) In. 2.375 - FEMALE
Set Screw Hole Diameter In. 0.375
Package Qty 1
Package Type EACH
Weight 1.13 LB
Country of Origin United States
