Spicer 2-1-1313-1 | (1310) Drive Shaft Flange

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	1310
Actual Hole Diameter (Max)	1.001
Actual Hole Diameter (Min)	1.000
Actual Keyway Width (Max)	0.252
Actual Keyway Width (Min)	0.250

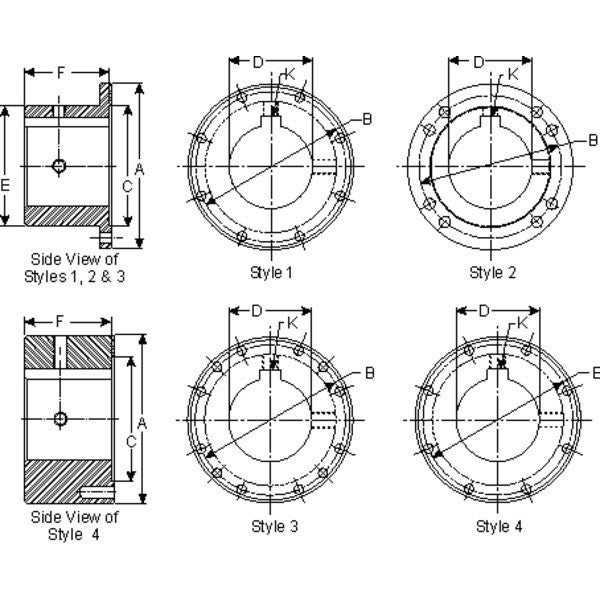

Bolt Circle Diameter (B) In.	3.130
Bolt Hole Diameter (In.)	.375 - DRILLED
Bore Diameter (D) In.	1.000
Circ Flnge Face To End Of Hub	2.000
Flange Type	Circular
Flange Width Diameter (A) In.	3.880
Hub Diameter (E) In.	2.438
Key Width (K) In.	0.250
Material	Steel
Number Of Holes	4
Pilot Diameter (C) In.	2.375 - FEMALE
Set Screw Hole Diameter In.	0.375
Package Qty	1
Package Type	EACH
Weight	1.29 LB
Country of Origin	United States
