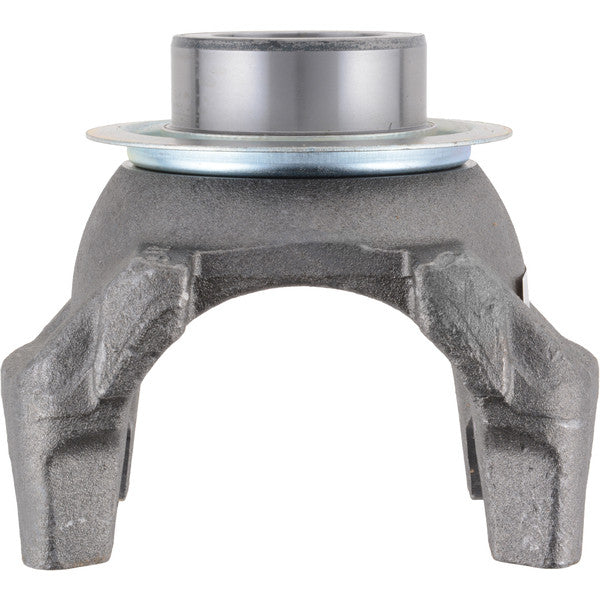

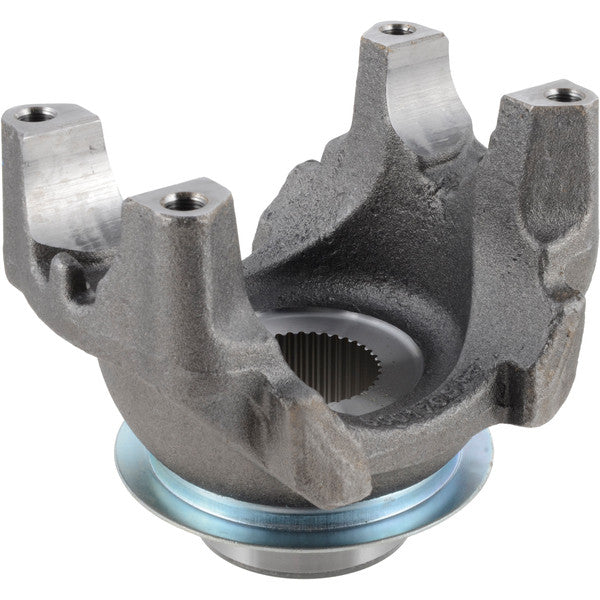

Spicer 170-4-08577-1X | (SPL170) Pinion Shaft End Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.

---

Brand	Spicer
Series	SPL170
Assembly	Y
C/L To End Hub S	5.540
C-Bore Depth	0.250
Hub Diameter R	3.000
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.281
Major Diameter	2.024
Material	Steel
Outside Yoke Dimension (In) E	6.456
Spline Count	39
Type	Splined Hole
Yoke Bearing Dimension (In) D	2.166
Yoke Style	HR
Package Qty	1
Package Type	EACH
Weight	6.4 LB
Country of Origin	Mexico
