Spicer 10-4-83 | (1000) PTO Shaft End Yoke - [Non-Returnable]
Spicer 10-4-83 | (1000) PTO Shaft End Yoke - [Non-Returnable]
Regular price
$82.85 USD
Regular price
Sale price
$82.85 USD
Unit price
/
per
Couldn't load pickup availability
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
View full details

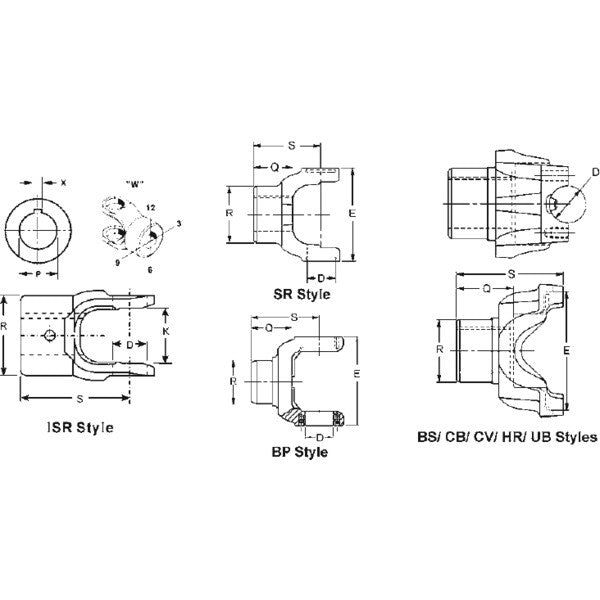

Brand | Spicer |
---|---|
Series | 1000 |
C/L To End Hub S | 2.500 |
Hole Diameter (In) P | 1.000 |
Hub Diameter R | 1.625 |
Inside Yoke Dimension (In) K | 1.500 |
Joint Angle #1 | 60 |
Keyway Location W | 3 |
Length Thru Hole Q | 1.030 |
Material | Steel |
Sae Keyway Width (In) X | 0.188 |
Set Screw Hole Diameter (In) | 0.375 |
Set Screw Location W | 9 |
Type | Straight Round Hole |
Yoke Bearing Dimension (In) D | 0.938 |
Yoke Style | ISR |
Package Qty | 1 |
Package Type | EACH |
Weight | 0.32 LB |
Country of Origin | United States |
