Dana
Spicer 10-4-1183SX | (1000ST) Steering Shaft Yoke
Spicer 10-4-1183SX | (1000ST) Steering Shaft Yoke
Regular price
$98.71 USD
Regular price
Sale price
$98.71 USD
Unit price
/
per
Couldn't load pickup availability
Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
View full details
Brand | Spicer |
---|---|
Series | 1000ST |

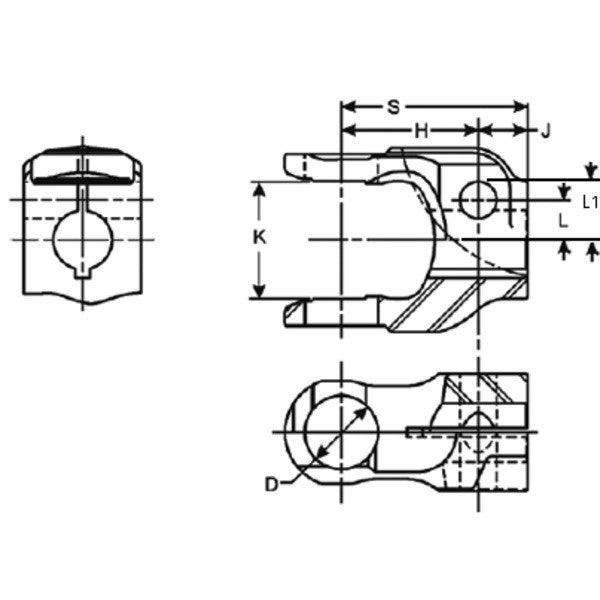

Bolt Hole C/L To Bearing C/L | 1.625 |
Bolt Hole C/L To Hub End | 0.750 |
Bolt Hole C/L To Spline C/L | 0.557 |
Bolt Hole Diameter | 0.406 |
Bolt Hole Top To Spline C/L | 0.753 |
C/L To Hub End | 2.375 |
Hole Diameter (P) | 1.000 |
Keyway Width | 0.188 |
Keyway Width (Max) | 0.1905 |
Keyway Width (Min) | 0.1885 |
Serrated Hole Maj. Diameter | 1.0005 |
Serrated Hole Min. Diameter | 0.9995 |
Type | Round |
Package Qty | 1 |
Package Type | EACH |
Weight | 0.45 LB |
Country of Origin | United States |
![10-4-1183Sx Spicer 1000St Series End Yoke](http://dcjperformance.com/cdn/shop/products/10-4-1183SX_Top_2527_de510aa9-13f6-47a1-a4fa-3381011fb8fc.jpg?v=1571497056&width=1445)
![Spicer 10-4-1183SX | (1000ST) Steering Shaft Yoke](http://dcjperformance.com/cdn/shop/products/10-4-1183SX_Front_2526_d728987d-8b0a-4cb1-aca3-f3a109d168aa.jpg?v=1571497056&width=1445)
![Spicer 10-4-1183SX | (1000ST) Steering Shaft Yoke](http://dcjperformance.com/cdn/shop/products/10-4-1183SX__9983_3a0f2b43-4215-466d-acf9-30fd51944ef7.jpg?v=1571497056&width=1445)
