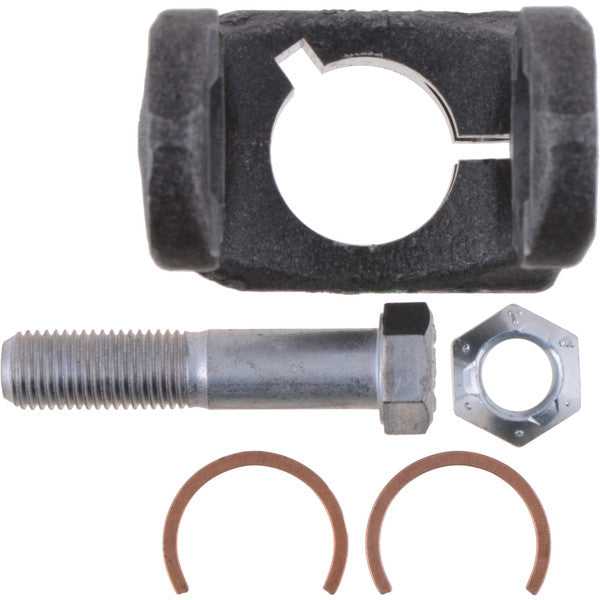

Spicer 10-4-1083SX | (1000ST) Steering Shaft Yoke

Dana

  • $45.61


Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1000ST
Bolt Hole C/L To Bearing C/L 1.750
Bolt Hole C/L To Hub End 0.625
Bolt Hole C/L To Spline C/L 0.560
Bolt Hole Diameter 0.467
Bolt Hole Top To Spline C/L 0.789
C/L To Hub End 2.375
Hole Diameter (P) 0.986
Keyway Width 0.188
Keyway Width (Max) 0.1905
Keyway Width (Min) 0.1885
Serrated Hole Maj. Diameter 0.986
Serrated Hole Min. Diameter 0.985
Type Round
Package Qty 1
Package Type EACH
Weight 0.41 LB
Country of Origin United States
