1-4-933 Spicer 1100 Series End Yoke

Spicer 1-4-933 | (1100) PTO Shaft End Yoke


  • $143.37

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Brand Spicer
Series 1100

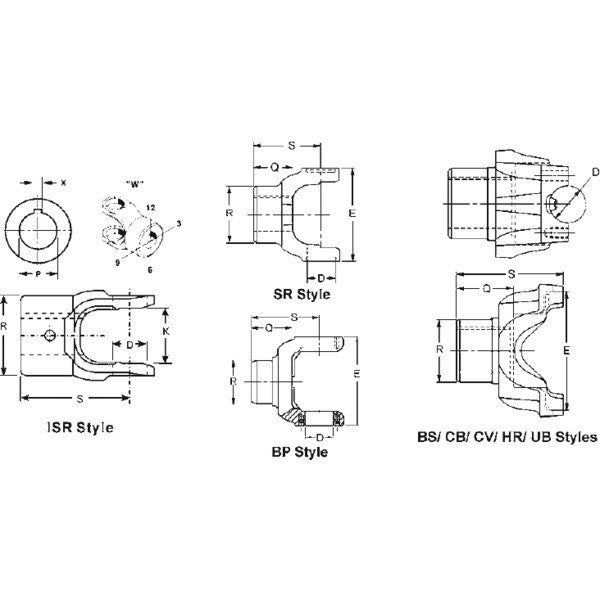

C/L To End Hub S 2.250
Hole Diameter (In) P 1.250
Hub Diameter R 2.000
Involute Spline N
Keyway Location W 3
Material Steel
Outside Yoke Dimension (In) E 2.656
Sae Keyway Width (In) X 0.312
Set Screw Hole Diameter (In) 0.375
Set Screw Location W 9
Type Straight Round Hole
Yoke Bearing Dimension (In) D 0.938
Yoke Style SR
Package Qty 1
Package Type EACH
Weight 0.43 LB
Country of Origin United States
