Meritor 62NYSB24-31 | Driveline - Flange Yoke

The same parts used on new OEM equipment and installed on new trucks rolling down the assembly lines. Plus they are continually updated with the latest design enhancements.
Meritor Genuine parts are the best choice for new vehicles, for new vehicles still under warranty and for customers who want to run with the best and maintain the genuine performance of their vehicles with genuine OEM replacement parts.

---

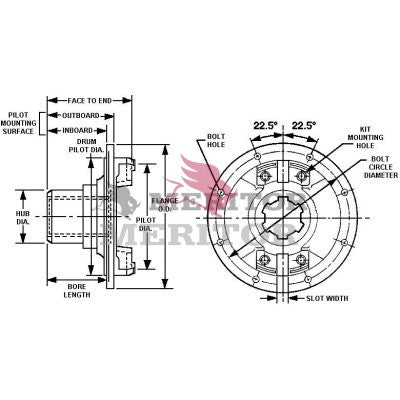

Brand	Meritor Genuine
Series	62N
Bolt Circle Diameter	7.25 in.
Bolt Hole Diameter	0.41 in.
Bolt Holes Drilled Or Threaded	DR
Bore Length	2.20 in.
Drum Pilot Diameter	6.44 in.
Face To End	3.94 in.
Flange Outside Diameter	8.25 in.
Hub Diameter	2.25 in.
Inboard Pilot Mounting Surface	2.72 in.
Joint Angle	18°
Kit Mounting Hole Diameter	0.38 in.
Kit Mounting Hole Drilled Or Threaded	TH
Kit Mounting Hole Threads Per Inch	24
Marketing Group	Wing Bearings
Outboard Pilot Mounting Surface	3.09 in.
Pilot Diameter	5.53 in.
Slot Width	0.56 in.
Spline Diameter	1.502 in.
Spline Number Of Splines	10
Unit Pack	1
Use U-Joint Kit	CP62N-DWT, CP62N-HB, CP62N-HWD, or PERMALUBE
Weight	11.00
