7956-VGG-5-240N | High Performance (Blue Max) Push-Pull Cable, Grooved, 5" Travel, 20' Overall Length

High Performance Blue Max push pull cables are lubed for life inside a binder wired PTFE core conduit. The outer jacket is resistant to abrasions, gasoline, diesel and chemicals, withstanding temperatures between -65°F — 350°F.. All Parts are stainless steel (Innermember, Conduit Caps, End Rods, Support Tubes, Hex Nuts, Lockwashers and Jam Nuts).

Note: This cable is custom built and cannot be returned for credit or replacement unless there is a defect or the product you received does not match the product description on this page.
For an additional fee this cable can be shortened but not lengthened. Travel, conduit end fittings, duty and type of control cannot be altered.

NOT FOR USE ON AIRCRAFT!

---

Construction	High Performance (Blue Max) With All Exposed Fittings/Parts Stainless Steel - both ends
Seal	Model 6 Wiper Seal
End Rod Thread	10-32 x 0.89

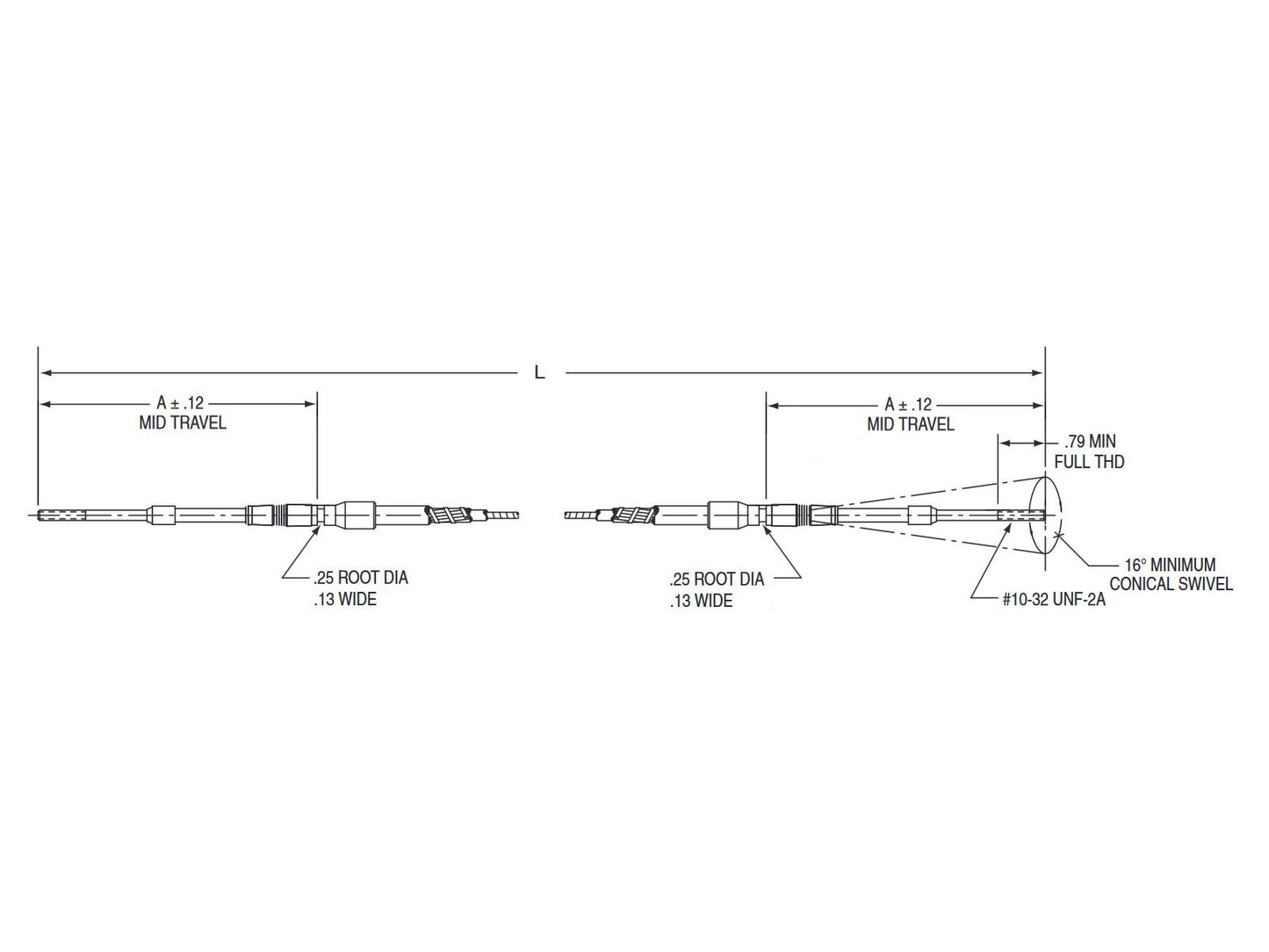

End Fittings	Grooved
Grooved Dimension (A)	9.69
Travel	5
Push Load Capacity (lbs)	45
Pull Load Capacity (lbs)	120
Minimum Bend Radius	4
Overall Length	240 (+/- .25)
All Measurements Are In Inches Unless Otherwise Specified

Applications
Marine	Racing
Shift	Shift
Throttle	Fuel Shut Off
Trim	Chute Release
	Throttle
Not Intended For Use as Steering Cable
